Specifications

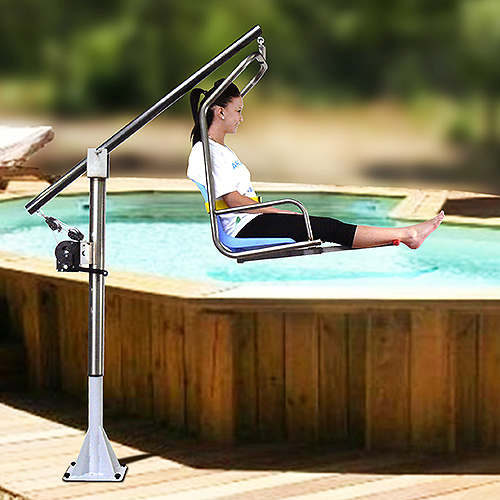

It is constituted with a pivoting column articulated with an arm in order to pass over the wall of the spa, height 3 ft 11 in
![Special lift for upground spa archimède Special lift for upground spa archimède](https://www.archimede-aquafitness.com/wp-content/uploads/2015/09/PP04-avec-cotes-en-pieds-552x568.png)
Amovible, turning on 360° it is moved by a manual winch with an inox cable and a pulley block
![Winch lift for pool and spa archimède Winch lift for pool and spa archimède](https://www.archimede-aquafitness.com/wp-content/uploads/2015/09/TREUIL-e1446118767780-300x300.png)
Fixation on the soil with a plate, 4 wheel screws and 4 safety plugs anchored in the soil
(resistance to the arrachment : 2 x 2,5 tons)
Pool lift selector (see schema)
The edges of the pool have different form some are equipped with a gutter of over-flowing (1) some with a low (2) wall.
The plugs of the plate must be positioned behind these devices
![Befestigung am Boden mit einer Grundplatte, 4 Spezialschraubenn und 4 Sicherheitszapfen, die am Boden verankert sind (Widerstandsfähigkeit gegen Herausreißen : 2 x 2,5 Tonnen) Befestigung am Boden mit einer Grundplatte, 4 Spezialschraubenn und 4 Sicherheitszapfen, die am Boden verankert sind (Widerstandsfähigkeit gegen Herausreißen : 2 x 2,5 Tonnen)](https://www.archimede-aquafitness.com/wp-content/uploads/2015/10/PHOTO-INSTAL-PLATINE.png)
![schéma des 3 positions en bord de piscine schéma des 3 positions en bord de piscine](https://www.archimede-aquafitness.com/wp-content/uploads/2015/10/schéma-des-3-positions-en-bord-de-piscine.jpg)
Admissible load 130 kg (285 lb)
Structure in marine 304 stainless steel and in hot galvanized S235 steel with a waterproofing epoxy coating
Folding protection cover in PVC
![Folding protection cover in PVC Folding protection cover in PVC](https://www.archimede-aquafitness.com/wp-content/uploads/2015/09/housse-PVC-146x300.jpg)
The safety instructions must be rigorously applied : Assembly on a type B250 concrete base (250kgs of concrete per cubic meter. uncracked concrete)
Technical constraints
Positioning, swivel pins attachment and assembly of the board must be made by a professional (bricklayer)
The pool lift must be protected with its PVC cover when not in use
